by Sarah Whitfield

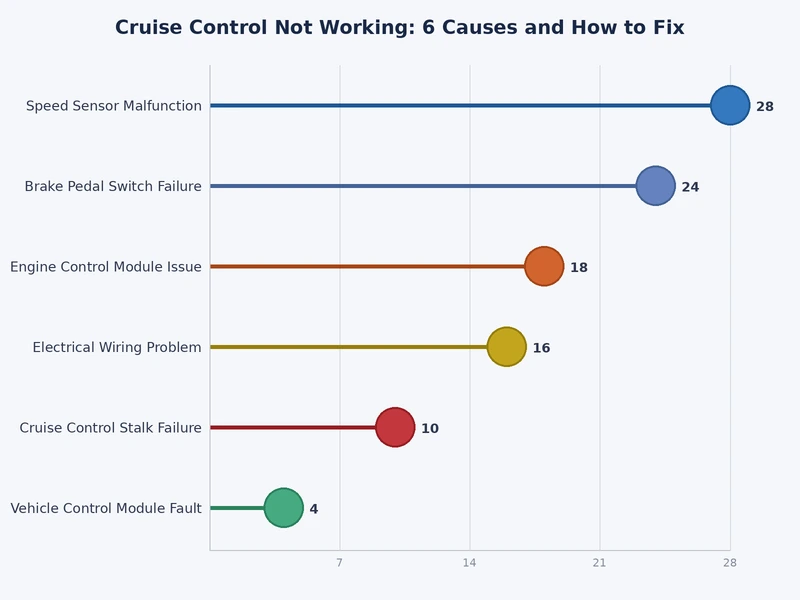

When cruise control stops working, the cause almost always falls into one of six categories: a blown fuse, a faulty brake light switch, a bad vehicle speed sensor, damaged wiring, a defective control switch, or an ECU module fault. Most of these are diagnosable at home with basic tools. The troubleshooting section covers a wide range of vehicle system failures, and cruise control is one of the more straightforward electronic issues to work through systematically.
The good news is that the majority of cruise control failures don't require expensive repairs. Fuses cost a dollar. Brake light switches run $10 to $40. Even a vehicle speed sensor replacement is a manageable DIY job for anyone comfortable with basic mechanical work. Understanding which cause applies to a specific situation is the real skill — and that comes down to knowing the symptoms of each failure mode.
Contents
The cruise control system draws from a dedicated fuse circuit. When that fuse blows — often from a brief electrical surge or a downstream short — the entire feature shuts off instantly. There's no gradual degradation. One moment it works; the next it doesn't. Checking the fuse box is always the first diagnostic step because it takes less than five minutes and costs nothing if the fuse is intact.
The cruise control fuse is labeled in the owner's manual and located in either the under-hood fuse box or the cabin fuse panel, depending on the make and model. For a clear walkthrough of the inspection and replacement process, this guide on finding and replacing a car fuse covers everything needed to get it done correctly. If the replacement fuse blows again immediately, a short circuit exists in the system — swapping more fuses won't fix it.
The brake light switch performs two jobs: illuminating the brake lights and signaling the cruise control module when the brake pedal is pressed. A faulty switch often sends a continuous false signal indicating the brakes are applied, which causes the cruise control system to disengage the instant it engages — or refuse to engage at all. The behavior mimics a driver tapping the brakes, because from the module's perspective, that's exactly what's happening.
The telltale signs are brake lights that stay on without pedal input, don't illuminate when the pedal is pressed, or flicker erratically. Any of these alongside a cruise control failure points directly at the switch.
Cruise control maintains a set speed by continuously reading the vehicle speed sensor output. When the VSS fails or sends erratic data, the system loses its reference point and shuts down as a safety measure. This failure often surfaces alongside a check engine light, an erratic speedometer, and rough transmission shift behavior — all sharing the same root cause.
The VSS typically mounts near the transmission output shaft or at a wheel hub. The same area gets inspected when diagnosing suspension wear — drivers dealing with both a sluggish cruise system and a rough ride might find the detailed symptom list in this article on signs that shocks and struts need replacing helpful for distinguishing between issues before diving into repairs.
Wiring harnesses corrode, vibrate loose, and get pinched over years of use. A single broken wire or oxidized connector pin in the cruise control circuit is sufficient to take down the entire system. This failure mode is more common in older vehicles, high-mileage trucks, and any vehicle that's had aftermarket accessories installed. Rodent damage to underhood wiring is another overlooked cause that shows up more often than most drivers expect.
Wiring faults rarely throw clean diagnostic codes, which makes them frustrating to locate. Diagnosis requires a multimeter and a wiring diagram specific to the vehicle's year, make, and model.
The control stalk or button cluster used to set, resume, cancel, and adjust cruise speed can wear out over time. Carbon buildup on switch contacts, moisture intrusion, or physical damage prevents signals from reaching the cruise module. A defective switch often produces selective failure — the "Set" button works but "Resume" doesn't, or the system engages but won't accelerate or decelerate on command. This partial functionality is a strong indicator the switch itself is the problem rather than the module.
Modern cruise control systems are software-managed, handled either by a dedicated module or integrated into the vehicle's main ECU. A corrupted calibration, a failed module component, or a software glitch can disable the feature entirely. This is the least common cause, but also the hardest to diagnose without professional scan equipment capable of reading live data streams — not just the basic fault codes a standard OBD-II reader pulls. Complex sensor and module interactions are similar to what's described in the breakdown of bad catalytic converter symptoms, where ECU misreads lead to cascading system behavior.

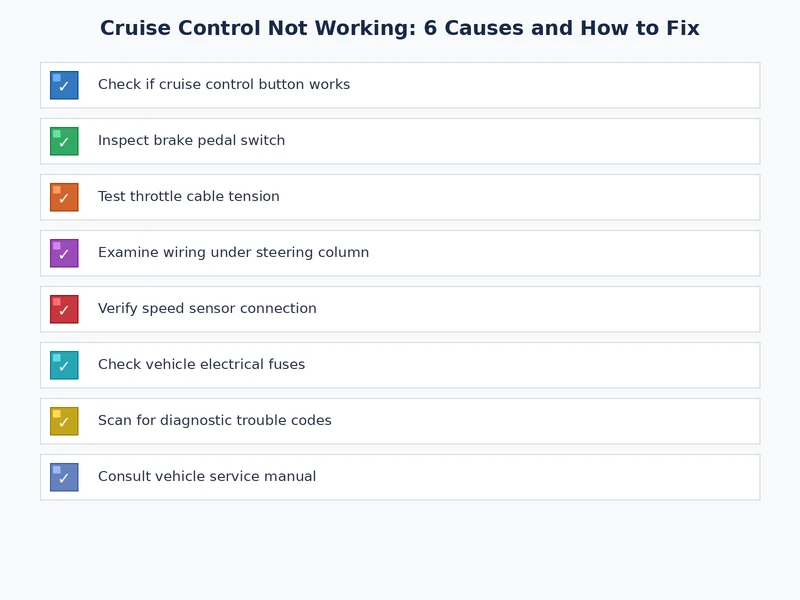

Before reaching for any tools, pull the fuse diagram and locate the cruise control fuse. A visual inspection — looking for a broken wire inside the fuse body — is sufficient for standard blade fuses. If it looks intact but the system is still dead, swap it with a matching amperage fuse anyway, since internal failures aren't always visible.
Next, test the brake lights. Have someone stand behind the vehicle while the driver presses the brake pedal. Lights that don't come on, stay on without pedal input, or flicker are pointing directly at the brake light switch. This two-minute check eliminates the most common cause before any electrical testing begins.
An OBD-II scanner retrieves fault codes that narrow the diagnostic field quickly. Code P0500 (Vehicle Speed Sensor Malfunction) points to the VSS. P0571 (Cruise Control/Brake Switch A Circuit Malfunction) targets the brake switch. P0579 covers the cruise control multi-function input. Retrieving these codes before replacing parts saves both money and time. Drivers who've used similar diagnostic steps for other electronics — like the process outlined in the guide to backup camera troubleshooting — will recognize the same systematic approach at work here.
Pro tip: Always clear stored fault codes after making a repair and complete a full drive cycle before declaring the fix successful — codes can persist in memory even after the underlying problem is resolved.
When no fault codes appear and the fuse and brake switch check out, wiring is the likely culprit. A multimeter set to continuity mode can trace the cruise control circuit from the control switch to the module, identifying any open or high-resistance segments. Testing voltage at the brake light switch — with the pedal both at rest and fully depressed — confirms whether it's sending the correct signal. A switch at rest should show near-zero voltage on the cruise signal wire; if it shows battery voltage, it's sending a false brake-applied signal.
Locate the fuse using the diagram in the owner's manual. Remove the blown unit with a fuse puller or needle-nose pliers and press in a new fuse of identical amperage — never substitute a higher-rated fuse. Total time is under five minutes. If the new fuse blows the moment the ignition turns on, there's a short circuit downstream. Stop, don't replace it again, and trace the wiring instead.
The brake light switch mounts on the brake pedal bracket under the dash, accessible without removing any trim panels on most vehicles. Disconnect the electrical connector, rotate the old switch counterclockwise to release it from its bracket, and install the new unit in reverse. Adjust the switch position so brake lights activate precisely when the pedal moves — most switches have an adjustment slot for this. Verify brake light behavior and test cruise control engagement before closing up.
If the VSS is mounted at the transmission, a small amount of fluid will drain when removing it — have a drain pan and the correct fluid type ready. Unplug the electrical connector, remove the retaining bolt, and pull the sensor out straight. Install the new sensor with a fresh O-ring, torque to specification, and refill any lost fluid. Confirm the fault code clears after a test drive before reassembling anything.
Corroded connectors respond well to electrical contact cleaner and a terminal repair kit. Broken wires require proper splicing — use heat-shrink solder connectors, not electrical tape, which deteriorates and fails in underhood heat. Routing repairs to avoid pinch points and securing harnesses with zip ties prevents recurrence. The same attention to moisture and clean connections that extends service life on battery terminals applies here — the principles in this guide to extending car battery life translate directly to electrical system maintenance throughout the vehicle.
The blanket "never use cruise control in wet conditions" advice overstates the actual risk. Standard cruise control doesn't increase hydroplaning risk on its own — the danger comes from reduced driver engagement with throttle control during sudden traction loss. On a clear highway in light rain, the risk is minimal. In heavy rain with standing water, disengaging cruise control is sound practice, but the reasoning should be specific rather than reflexive. Modern adaptive cruise control systems with automatic braking actually handle variable-traction conditions better than older designs.
Note: On vehicles without automatic braking, deactivating cruise control in heavy rain or on standing water is a reasonable precaution — but the risk is from the conditions, not the system itself.
Low battery voltage causes widespread electrical oddities, but it rarely targets cruise control in isolation. Battery issues typically manifest as slow cranking, dim headlights, or multiple warning lights simultaneously. If cruise control is the only system misbehaving, the battery is almost certainly not the issue. That said, confirming battery health as part of any electrical diagnosis is always a reasonable step — here's a reliable method for testing a car battery at home without specialized equipment.
Newer vehicles with adaptive cruise control introduce additional failure points: forward-facing radar sensors, optical cameras, and more complex ECU integration. According to NHTSA's automated vehicle safety research, advanced driver assistance systems require periodic sensor calibration and can be disabled by something as minor as a dirty or damaged front bumper covering the radar unit. Greater capability comes with greater complexity — that cuts both ways.
One of the most recognizable real-world scenarios is a system that engages and disengages within one or two seconds — the driver sets speed, and cruise control immediately cancels. The module receives a false "brakes applied" signal and shuts off exactly as designed. Nine times out of ten, this is the brake light switch. The fix is inexpensive and the diagnosis is fast.
Warning: A misadjusted or stuck brake light switch feeding constant false signals to the cruise module can also influence transmission shift behavior on some vehicles — don't ignore this symptom pattern.
A system that engages at highway speeds but fails below 35 mph — or behaves intermittently at any speed — almost always points to the vehicle speed sensor or its wiring. Intermittent VSS signals produce speed-dependent behavior that misleads drivers into thinking the system is selectively working. This scenario often accompanies erratic speedometer readings. When multiple electronic systems act up simultaneously, the kind of cross-system diagnostic thinking used for key fob failures — ruling out shared circuits and common power sources — applies just as well here.
Aftermarket stereos, remote start systems, and alarm installations are frequent triggers for sudden cruise control failures. Wiring taps made during those installs can interrupt the cruise control signal path. When a failure follows closely after any underhood or under-dash work, checking the wiring at those intervention points is the logical first step — before chasing unrelated causes.
Cruise control doesn't appear on any maintenance schedule, but the systems it depends on do. Keeping brake light switch connectors, speed sensor harnesses, and fuse box terminals free of corrosion and moisture is preventive work that takes minutes annually. In high-humidity climates or vehicles frequently exposed to road salt, inspecting these connections at each oil change catches oxidation before it causes failures.
Using cruise control on every long drive catches intermittent problems early. A system that mostly works but occasionally cancels without driver input is signaling an impending failure — whether a marginal brake switch, a slightly corroded connector, or a VSS beginning to drop signals. Addressing these early-stage symptoms costs far less than a full module diagnosis later.
| Cause | DIY Difficulty | Parts Cost | Shop Labor Estimate |
|---|---|---|---|
| Blown Fuse | Very Easy | $1–$5 | $0 (DIY only) |
| Brake Light Switch | Easy | $10–$40 | $50–$100 |
| Vehicle Speed Sensor | Moderate | $20–$80 | $100–$200 |
| Wiring / Connectors | Moderate–Hard | $10–$50 | $100–$300 |
| Cruise Control Switch | Moderate | $30–$120 | $75–$150 |
| ECU / Control Module | Hard | $150–$600+ | $200–$500+ |
Absolutely. A malfunctioning cruise control system has no effect on core vehicle operation — braking, steering, and engine function remain unaffected. The only impact is the inconvenience of manually managing throttle on long drives. That said, if the brake light switch is the cause, getting it repaired promptly matters, since that component affects brake light function and potentially transmission behavior on some vehicles.
A battery disconnect can clear stored fault codes and reset the ECU, which occasionally resolves software-related cruise control glitches. However, it doesn't fix physical problems like a blown fuse, worn switch, or failed sensor. If disconnecting the battery temporarily restores function but the issue returns, a deeper diagnostic is needed to find the actual root cause.
Simple repairs are fast. A fuse replacement takes under five minutes. A brake light switch swap runs 20 to 40 minutes including adjustment and testing. A vehicle speed sensor replacement, including fluid management, takes one to two hours for most DIYers. Wiring diagnosis is the wildcard — it can take anywhere from 30 minutes to several hours depending on where the fault is located in the harness.
A failing vehicle speed sensor affects multiple systems simultaneously. Transmission shift points, ABS function, traction control, and speedometer accuracy all depend on VSS data. On vehicles where these systems share the same sensor signal, a single bad VSS can disable or degrade all of them at once. Running a fault code scan typically surfaces all affected systems together, which makes the VSS easier to identify as the shared root cause.
 |
 |
 |
 |
About Sarah Whitfield
Sarah Whitfield is a diagnostics and troubleshooting specialist who spent ten years as an ASE-certified technician before joining the editorial team. She specializes in OBD-II analysis, electrical gremlins, and the kind of intermittent problems that make most owners give up.
