How to Use a Multimeter on a Car

Learning how to use a multimeter on a car is the single most valuable diagnostic skill you can develop as a home mechanic. A quality digital multimeter allows you to measure battery voltage, test alternator output, check sensor signals, and trace parasitic draws without removing a single component. Whether you are troubleshooting a no-start condition or verifying a repair, the multimeter eliminates guesswork from your car care routine and puts hard data in your hands.

The process itself is straightforward once you understand which settings correspond to which tests. Voltage, resistance, continuity, and current each require a specific dial position and probe placement, but the underlying logic remains consistent across every vehicle platform. You do not need an expensive scan tool or a factory service subscription to catch the majority of electrical faults that strand cars on the side of the road.

This guide covers the core tests every owner should master, the settings that matter most, and the advanced techniques that separate a quick voltage check from a proper diagnosis.

Understanding Your Multimeter's Role in Car Diagnostics

A multimeter consolidates three distinct instruments into one handheld device: a voltmeter, an ohmmeter, and an ammeter. Modern automotive DMMs also include continuity, frequency, and duty-cycle modes that are essential for testing PWM-controlled components such as fuel injectors and idle air control valves. Understanding which mode to select for each test is the foundation of every diagnosis you will perform on any vehicle electrical system.

How Automotive Circuits Differ from Household Wiring

Automotive circuits operate on low-voltage DC power, typically 12.6V at rest and 13.5–14.7V with the engine running. Unlike household AC systems, vehicle wiring relies heavily on chassis grounds, which means corrosion at a single ground point can cascade into multiple seemingly unrelated symptoms. When you measure resistance or perform continuity checks on automotive circuits, you are almost always looking for values under 5 ohms, and anything above that threshold indicates a connection that warrants cleaning or replacement.

Pro Tip: Always test ground circuits by measuring voltage drop under load rather than simple resistance. A ground path can show 0.2 ohms at rest but still fail under the 15+ amps that a headlight circuit demands.

Safety Considerations Before You Probe

Before you connect your probes to any circuit, confirm that your meter's input impedance is rated at 10 megaohms or higher to avoid loading sensitive sensor circuits. You should also verify that your test leads are CAT III rated for automotive use, as lower-rated leads can arc under fault conditions. Never probe high-amperage circuits such as starter motor cables with your meter set to the milliamp range, because exceeding the fuse rating on your meter's current input will blow the internal fuse or, worse, damage the meter's shunt resistor permanently.

Testing the Battery and Charging System

The battery and charging system is the most common reason vehicle owners reach for a multimeter, and it is the best place to build your diagnostic confidence. A systematic approach to these tests will help you determine whether your issue is a weak battery, a failing alternator, or a wiring fault between the two.

Resting Voltage and Load Testing

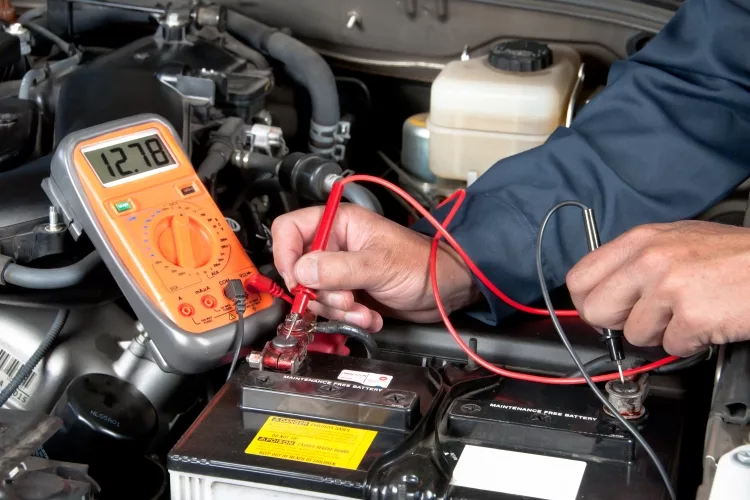

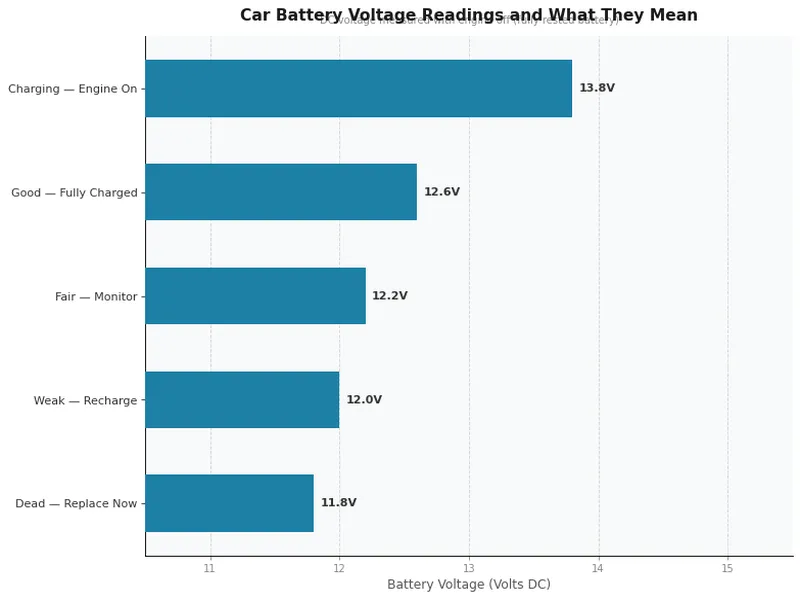

Set your multimeter to DC volts, connect the red probe to the positive terminal and the black probe to the negative terminal, and read the open-circuit voltage with the engine off and all accessories disabled. A fully charged battery in good health should read between 12.6V and 12.8V at room temperature. If you have recently driven the vehicle, allow a surface charge to dissipate for at least two hours before testing, or briefly cycle the high beams for 15 seconds to bleed it off. If you need to reconnect your battery after service, always retest voltage afterward to confirm a solid connection.

Verifying Alternator Output Under Load

Start the engine and read voltage at the battery terminals with your meter still connected. A healthy charging system should produce between 13.8V and 14.5V at idle, rising slightly with RPM increases. Turn on the headlights, blower motor, and rear defroster simultaneously to load the system, and confirm the voltage does not drop below 13.5V. If it sags under load, measure voltage directly at the alternator's B+ terminal and compare it to the battery terminal reading; a difference greater than 0.3V points to a wiring or fusible link fault rather than a failing alternator.

Warning: Never disconnect the battery while the engine is running to "test the alternator." This practice can spike voltage and destroy sensitive ECU components on any vehicle built after the mid-1990s.

Advanced Techniques for Pinpointing Electrical Faults

Voltage Drop Testing Across Connections

Voltage drop testing is the single most underused technique in DIY automotive diagnostics, yet it is the most reliable method for finding high-resistance connections that ohmmeter readings miss under static conditions. To perform the test, set your meter to DC volts, place your probes on opposite sides of the connection you wish to evaluate, and activate the circuit so current flows through it. A healthy connection should show less than 0.1V of drop across any single splice, connector, or ground junction. Readings above 0.3V indicate corrosion, a loose terminal, or an undersized wire that is creating unwanted resistance and generating heat.

This technique is especially valuable when diagnosing dim headlights, sluggish starter cranking, or intermittent sensor faults that only appear under operating loads. If you are chasing a no-start condition related to the ignition circuit, voltage drop testing across the ignition switch contacts and starter relay will isolate the fault far faster than continuity checks alone.

Measuring Parasitic Draw with Milliamp Mode

A parasitic draw test identifies circuits that continue to consume current after the vehicle is shut down, which is the most common cause of batteries found dead overnight. Connect your meter in series with the negative battery cable using the milliamp (mA) or amp setting, close all doors, and wait at least 40 minutes for all modules to enter sleep mode. A normal parasitic draw falls between 20 mA and 50 mA on most vehicles; anything above 75 mA warrants investigation. Pull fuses one at a time while monitoring the meter until the draw drops, which identifies the offending circuit.

Pro Tip: Use a bypass wire or switch in parallel with your meter leads during initial connection to avoid voltage spikes that reset modules and restart the sleep timer, which would invalidate your test results entirely.

Analog vs. Digital Multimeters for Automotive Work

The choice between an analog needle meter and a digital multimeter matters more than most guides suggest. Analog meters excel at showing fluctuating signals because the needle movement provides a visual representation of instability that a rapidly changing digital display cannot match. However, their low input impedance (typically 20,000 ohms per volt) makes them unsuitable for testing modern automotive sensor circuits, where they can load the circuit and produce misleading readings. Digital multimeters with auto-ranging capability, a 10-megaohm input impedance, and a min/max capture function are the correct choice for virtually every diagnostic scenario you will encounter on a modern vehicle.

For sensor diagnostics like crankshaft position sensors, you need a meter capable of reading AC voltage and frequency, which rules out most budget analog models entirely. Invest in a reputable automotive-grade DMM from Fluke, Klein, or Innova, and treat it as a long-term tool purchase rather than a disposable accessory.

Maintaining Your Multimeter for Long-Term Accuracy

Your multimeter is a precision instrument, and neglecting its maintenance will degrade the accuracy of every reading you take. Follow these practices to keep your meter reliable across its full service life:

• Replace the battery as soon as the low-battery indicator appears, because a weak internal battery produces erratic readings in resistance and continuity modes long before the display becomes unreadable.
• Inspect your test leads before every use for cracked insulation, bent probe tips, and loose banana plug connections, as damaged leads introduce resistance that skews voltage drop measurements.
• Store the meter in its protective case with the dial set to the OFF position to prevent accidental battery drain during storage.
• Keep spare automotive fuses (typically 200 mA and 10A) for the meter's current input jacks, because a blown fuse renders the ammeter function completely inoperable with no visible error on most models.
• Verify calibration annually by measuring a known reference voltage, such as a fresh AA battery (1.5V nominal) or a bench power supply, and compare the reading against the expected value.

A well-maintained multimeter paired with fresh leads will serve you reliably for a decade or more, and the cost of replacement fuses and batteries is trivial compared to a single misdiagnosis caused by a meter you cannot trust. For more context on automotive electrical fundamentals, the Wikipedia article on multimeters provides a solid technical reference on meter specifications and measurement categories.

Final Thoughts

Pick up your multimeter this weekend, set it to DC volts, and measure your battery's resting voltage as your first hands-on exercise. That single test takes 30 seconds, requires zero mechanical skill, and immediately tells you whether your charging system deserves further investigation. Once that first reading makes sense to you, every subsequent test in this guide will feel like a natural extension of the same fundamental technique, and you will approach electrical problems with confidence rather than apprehension.
