by Marcus Chen
Most golf cart owners wonder how many batteries does a golf cart need before they ever open the battery compartment — and the answer deserves no hedging. Standard electric golf carts use between four and eight batteries, entirely determined by individual battery voltage and the cart's target system voltage. Running a cart on four or five batteries is absolutely possible in the right configuration, but it cannot be done arbitrarily. This is a core performance consideration that affects range, power delivery, and long-term battery longevity.
Our team has evaluated dozens of golf cart battery setups across private residential communities, golf courses, and utility fleet operations. The confusion almost always traces back to one thing: conflating individual battery voltage with total pack voltage. A four-battery pack using 12-volt batteries hits the same 48-volt target as an eight-battery pack using 6-volt batteries — but the two configurations behave quite differently under load and carry meaningfully different cost profiles.
This guide breaks down the battery math behind every common configuration, how to select the right battery chemistry, what a proper installation involves, and the maintenance habits that separate a pack running strong at five years from one that struggles at two.
Contents
Electric golf carts operate on either 36-volt or 48-volt DC electrical systems. According to Wikipedia's overview of lead-acid batteries, the deep-cycle lead-acid design has powered electric vehicles for well over a century, and golf carts represent one of its most consistent modern applications. The battery pack supplies current to a motor controller, which regulates power delivery to the drive motor based on throttle input. Everything downstream — range, hill-climbing torque, top speed — depends on how well that pack is configured and maintained.
Two numbers define any battery's usefulness in a golf cart: voltage and amp-hour (Ah) capacity. When batteries are wired in series, voltages add — six 6-volt batteries in series produce 36V total. Amp-hours, however, do not add in series; they remain fixed at the rating of a single battery. A pack of six 225Ah batteries delivers 225Ah total, not 1,350Ah.
Watt-hours — the product of pack voltage and amp-hour capacity — is the most accurate predictor of range. A 48V pack with 200Ah holds 9,600 watt-hours of usable energy. That single number explains more about real-world run time than voltage or amp-hours alone.
In a series circuit, each battery's positive terminal connects to the next battery's negative terminal, chaining voltage while current capacity stays fixed. The cart's main positive and negative leads attach to the outermost terminals in the chain. This is non-negotiable in golf cart design — parallel wiring would hold voltage constant while increasing amp-hours, which is not how standard golf cart controllers expect to receive power.
Our team has encountered DIY installs where two battery pairs were wired in parallel before connecting those pairs in series. The resulting pack delivered inconsistent voltage and caused the motor controller to cut out repeatedly under load. Series order and polarity are not areas where improvisation pays off.

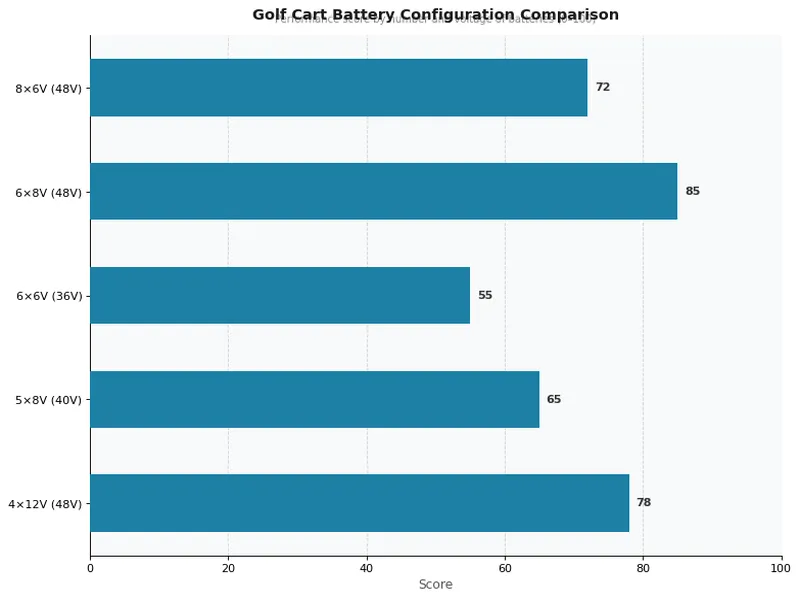

The three most common golf cart battery configurations each reach a target system voltage using a different battery count. The trade-offs involve upfront cost, physical weight, battery bay space, and amp-hour capacity — all of which affect real-world performance.
| Configuration | Number of Batteries | Battery Voltage | Pack Voltage | Typical Capacity | Best Application |
|---|---|---|---|---|---|
| 4-battery pack | 4 | 12V | 48V | 150–200 Ah | Newer carts, compact battery bays |
| 6-battery pack (36V) | 6 | 6V | 36V | 180–225 Ah | Older carts, standard golf courses |
| 6-battery pack (48V) | 6 | 8V | 48V | 160–190 Ah | Mid-range Club Car, EZGO |
| 8-battery pack | 8 | 6V | 48V | 200–240 Ah | Extended range, fleet operations |
A four-battery configuration uses 12-volt deep-cycle batteries in series to reach 48V. This is increasingly common on newer production carts — EZGO RXV and several Yamaha models ship from the factory with 12V battery systems. The case for this setup is straightforward: 12V batteries are widely available, and four units are considerably easier to handle physically than six or eight.
The practical constraint is capacity per battery. Each 12V unit carries the full pack load independently, so selecting a high-capacity option — at least 150Ah, ideally 200Ah — matters for acceptable range. Undersized 12V batteries in a four-pack drain quickly under normal use and cycle out well before their rated life.
Six-battery configurations are the most common arrangement our team encounters. The two variants — six 6V batteries for 36V systems, and six 8V batteries for 48V systems — represent the dominant setups in Club Car DS and Club Car Precedent carts, respectively.
The 6-volt deep-cycle flooded lead-acid battery has a strong reputation specifically in this application. When properly maintained, quality 6V units regularly achieve five to seven years of service. The higher internal cell count (three cells in a 6V battery vs. six in a 12V) provides more total plate surface area and generally better heat management under sustained discharge.
Eight 6-volt batteries in a 48V system (8 × 6V = 48V) deliver the highest amp-hour capacity of any standard configuration. Golf courses with longer layouts and commercial fleet operators managing large properties favor this setup for its extended range per charge cycle. The trade-off is physical space — not every golf cart chassis accommodates eight batteries without modification to the battery compartment.
Pro tip: Always verify the cart's system voltage before purchasing replacement batteries — mixing voltage configurations is one of the most common and costly installation mistakes our team encounters in the field.
The question of how many batteries does a golf cart need resolves entirely from the target system voltage and the chosen battery voltage. Series circuits are unforgiving — individual battery voltage multiplied by battery count must equal the system's rated pack voltage. Running the wrong count produces either an underpowered or incorrectly configured system that will not function properly.
Older gas-converted electric carts and many vintage EZGO and Club Car models run on 36-volt systems. The only standard path to a 36V pack is:
There is no legitimate four-battery or five-battery approach to 36V using standard battery voltages. Five 6V batteries in series produce 30V — insufficient to bring the motor controller into its operating range. Converting a 36V cart to 48V is possible but requires replacing the controller, solenoid, and potentially the motor itself — a significant investment well beyond a battery swap.
The 48-volt system offers genuine configuration flexibility, which is part of why 48V carts dominate newer production models. Three legitimate battery counts exist:
So yes — a 48V golf cart can run on four batteries. The answer is conditional on those batteries being 12-volt units and the cart being a 48V system. Four 6-volt batteries produce only 24V, and four 8-volt batteries produce 32V — neither is a functional pack voltage for any standard golf cart.
Three battery chemistries currently dominate the golf cart market, each with a distinct cost-performance trade-off:
Our team's view on lithium is pragmatic — the economics favor high-cycle-count applications like daily golf course operations or commercial fleet vehicles, where the per-cycle cost advantage compounds meaningfully over time. For recreational weekend use, quality FLA or AGM batteries remain competitive on a total-cost basis.
Battery replacement and routine maintenance require a focused set of reliable hand tools. Our team keeps a well-organized socket set dedicated to battery work — a good socket organizer keeps the right sizes immediately accessible without hunting through mixed drawers. Terminal bolts on golf cart batteries are typically torqued to a manufacturer specification, and using a proper torque wrench prevents both over-tightening — which cracks plastic battery cases — and under-tightening, which accelerates corrosion at the connection point.
For anyone needing to raise a golf cart for undercarriage inspection or battery bay access, a quality aluminum floor jack is lighter and easier to position than a steel unit while remaining more than adequate for golf cart weights. Those who prefer steel construction can find comparable options in our complete floor jack guide.
Golf cart owners who run aftermarket electrical accessories should account for added power draw when selecting battery capacity. Accessories like 30-inch LED light bars draw continuous current during operation, and undersized amp-hour ratings translate directly to reduced run time per charge cycle.
Charger compatibility with pack voltage is non-negotiable. A 36V charger connected to a 48V pack will not achieve a full charge; a 48V charger on a 36V pack risks cell damage from overcharging. Modern automatic chargers detect pack voltage and adjust output accordingly. Older fixed-voltage chargers must be matched exactly to the pack — no exceptions.
Lithium packs require a lithium-compatible charger specifically. Standard FLA chargers deliver incorrect absorption voltage profiles that degrade lithium cells progressively with each cycle. The charger investment belongs in the initial purchase budget alongside the batteries themselves.
Warning: Always disconnect the main negative terminal first and reconnect it last during any battery work — reversing this order on a live pack creates arc flash risk at the terminals.
Our team consistently recommends replacing the full battery pack in a single operation rather than swapping individual batteries as they fail. The reason is internal resistance. In a series string, batteries with different internal resistance — one new, the rest aged — do not share the load equally. The new battery carries a disproportionate share during discharge and charges disproportionately fast, accelerating its own wear.
The result is a pack that performs nearly as poorly as the old one despite containing new batteries. Anyone dealing with a single apparent failure in an otherwise functional pack should load-test every battery in the string before drawing conclusions — one weak cell can drag down the output of the entire series chain.
Battery cables in golf carts endure constant vibration, heat cycling from daily charging, and moisture exposure. During any battery replacement, cable inspection deserves the same attention as the batteries themselves. Frayed insulation, green or white corrosion at terminals, and loose connections all create voltage drops that the motor controller reads as a weak pack — even when the batteries are fully charged and healthy.
Applying a battery terminal protector spray after cleaning and reassembly is a simple step that meaningfully slows corrosion development between maintenance intervals. It costs almost nothing and consistently extends the service life of the connections.
Installation errors are more common than most people realize. Our experience shows that working from a wiring diagram specific to the cart model — not a generic diagram — prevents the overwhelming majority of mistakes. General rule: the pack's main negative cable attaches to the first battery's negative terminal; each subsequent battery chains positive-to-negative until the final battery's positive terminal connects to the cart's main positive lead.
Checking polarity with a multimeter before making the final connection to the cart's wiring harness is a worthwhile five-second step. A reversed pack connection can damage the motor controller immediately upon power-up, turning a straightforward battery replacement into a significantly more expensive repair.
FLA batteries require periodic water top-ups — distilled water only, never tap water. Tap water contains dissolved minerals that contaminate the electrolyte and accelerate plate sulfation. Most golf cart owners benefit from checking water levels monthly during regular use; those charging daily may need to check more frequently during warm months when evaporation increases.
The correct procedure is to check and top up water after a full charge, not before. Charging causes electrolyte expansion, and adding water before charging risks overflow that dilutes the electrolyte and reduces battery capacity. This kind of fluid-awareness discipline applies broadly across vehicles — our piece on the risks of driving with low engine coolant covers similar maintenance principles in a different context.
Equalization is a controlled overcharge — typically 10% above the normal absorption voltage — applied periodically to bring individual cell voltages within each battery back into balance. Over time, cells drift apart in state of charge, and equalization corrects that drift before it becomes permanent capacity loss.
Our team performs equalization on FLA packs approximately every 60 to 90 days under regular use conditions. Lithium iron phosphate batteries do not require equalization — their integrated Battery Management System (BMS) handles cell balancing automatically during every charge cycle, which eliminates one of the primary maintenance burdens of FLA ownership.
Deep-cycle battery manufacturers publish cycle-count curves against depth of discharge (DoD), and the data consistently shows that shallower discharges produce dramatically more total cycles. A quality FLA battery cycled to 50% DoD will typically deliver nearly twice as many total cycles as the same battery cycled to 80% DoD regularly.
The practical takeaway: charging after each use rather than waiting for the pack to run deeply low extends battery life in a measurable way. Running the pack flat before charging is one of the most reliable habits for shortening overall service life — the opposite of what intuition suggests.
This is the most persistent misconception our team encounters. Five 6-volt batteries wired in series produce 30V — not 36V, not 48V. A 30V pack will not meet the minimum operating voltage threshold for the motor controller in any standard golf cart. No partial connection or creative wiring arrangement changes this. Series circuits add voltage linearly, and five batteries simply cannot produce what six are required to deliver.
The same logic holds for every other combination. Four 8-volt batteries produce 32V. Three 12-volt batteries produce 36V but with far less amp-hour capacity than a proper 36V pack. Battery count and battery voltage must multiply precisely to the system's target voltage — there is no workaround in a series circuit.
Pack voltage does not determine how quickly a battery charges. Charge time is governed by the charger's amperage output and the pack's total amp-hour capacity. A 48V pack with 200Ah requires the same charging time as a 36V pack with 200Ah if both are connected to chargers with equivalent amperage output.
Our team has seen golf cart owners purchase undersized chargers under the assumption that a higher-voltage pack would charge faster, then find their batteries chronically undercharged because the charger lacked the output to deliver a full charge before the automatic shutoff triggered. The charger amperage rating — not the pack voltage — is the number that matters for charge time.
Battery replacement solves battery problems. A fresh pack does not fix a worn motor, a failing controller, corroded cables, a stuck solenoid, or a misadjusted governor. Our team has installed new battery packs in carts that still underperformed — the root cause was consistently elsewhere in the electrical system. Thorough diagnosis before purchasing batteries saves both money and the frustration of repeat repairs.
For golf cart owners who use or plan to use their cart on public roads, note that street-legal operation introduces additional electrical and safety requirements beyond the battery system. Our detailed breakdown of golf cart street legality by state covers the modifications commonly required for legal road use across different jurisdictions.
Not with any standard battery configuration. Five 6-volt batteries in series produce 30V, which falls below the minimum operating voltage for both 36V and 48V motor controllers. The battery count must multiply with the individual battery voltage to equal the system's rated pack voltage exactly — there is no partial configuration that bridges the gap.
With consistent maintenance — regular distilled water top-ups, proper charging habits, and periodic equalization — quality flooded lead-acid batteries typically last four to seven years in regular use. AGM batteries fall in a similar range with less maintenance overhead. Lithium iron phosphate batteries are rated for 2,000 or more charge cycles, which translates to a decade or more under normal golf cart use conditions.
A single failed battery in a series pack degrades the entire string's output. Pack voltage drops by the amount the failing battery can no longer supply, and the motor controller either reduces performance or shuts down entirely to protect itself. The correct diagnostic step is load-testing each battery individually — one weak cell inside any battery can suppress the output of the entire series chain, making the whole pack appear weaker than it is.
 |
 |
 |
 |
